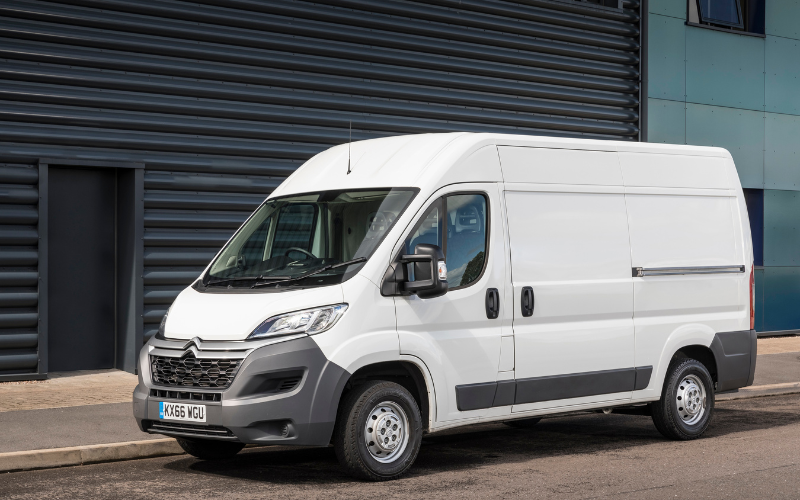

It’s clear to see why – the Relay is extremely versatile with six sizes to choose from, as well as the option of panel vans and window vans. But with so much choice, it might be difficult to know which Citroen Relay van is right for you.
That’s where we can help. We’ve put together a breakdown of dimensions for all Citroen Relay van sizes to make your decision easier. You’ll also find the Citroen Relay payload capacity for each size below.
Citroen Relay L2H1 dimensions
Exterior
Height (mm)
2,254
Length (mm)
5,413
Width - excluding door mirrors (mm)
2,050
Load area/interior
Height (mm)
1,662
Length (mm)
3,120
Width (mm)
1,870
Volume (m3)
10
Gross vehicle weight (kg)
3,500
Citroen Relay L2H2 dimensions
Exterior
Height (mm)
2,522
Length (mm)
5,413
Width - excluding door mirrors (mm)
2,050
Load area/interior
Height (mm)
1,932
Length (mm)
3,120
Width (mm)
1,870
Volume (m3)
11.5
Gross vehicle weight (kg)
3,500
Citroen Relay L3H2 dimensions
Exterior
Height (mm)
2,253
Length (mm)
5,998
Width - excluding door mirrors (mm)
2,050
Load area/interior
Height (mm)
1,932
Length (mm)
3,705
Width (mm)
1,870
Volume (m3)
13
Gross vehicle weight (kg)
3,500
Citroen Relay L3H3 dimensions
Exterior
Height (mm)
2,760
Length (mm)
5,998
Width - excluding door mirrors (mm)
2,050
Load area/interior
Height (mm)
2,172
Length (mm)
3,705
Width (mm)
1,870
Volume (m3)
15
Gross vehicle weight (kg)
3,500
Citroen Relay L4H2 dimensions
Exterior
Height (mm)
2,522
Length (mm)
6,363
Width - excluding door mirrors (mm)
2,050
Load area/interior
Height (mm)
1,932
Length (mm)
4,070
Width (mm)
1,870
Volume (m3)
15
Gross vehicle weight (kg)
3,500
Citroen Relay L4H3 dimensions
Exterior
Height (mm)
2,522
Length (mm)
6,363
Width - excluding door mirrors(mm)
2,050
Load area/interior
Height (mm)
2,172
Length (mm)
4,070
Width (mm)
1,870
Volume (m3)
17
Gross vehicle weight (kg)
3,500
Citroen Relay towing capacity
Regardless of which Citroen Relay size you choose, all can tow an unbraked trailer weighing up to 750kg.
The braked trailer capacity differs depending on the size and engine type you choose. But it is typically between 2,500 – 3,000kg.
